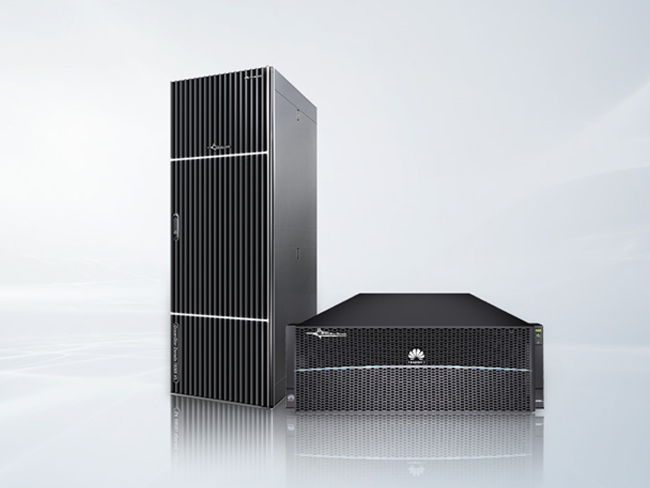

OceanStor Dorado 8000/18000 V6
Providing high performance of up to 21,000,000 SPC-1 IOPSTM, six-nines reliability (99.9999%), and intelligent acceleration for critical services.
-
All-Flash -Data
Storage- Dorado 3000 V6Entry-level all-flash storage for small and medium-sized businesses (SMBs)

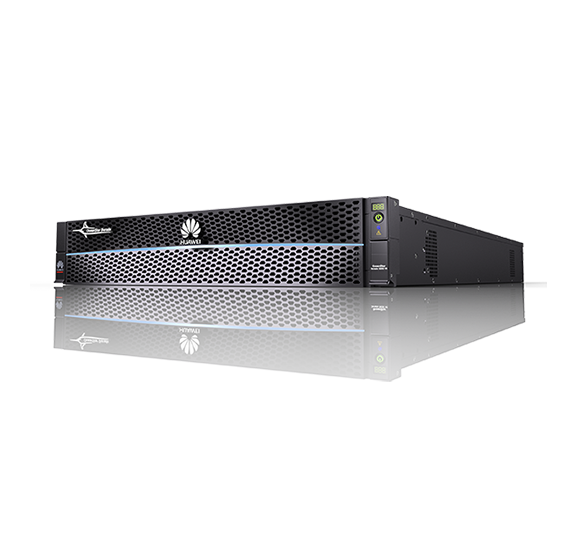

Meet the OceanStor Dorado 3000 V6 All-Flash Storage System, All designed for you!
Huawei OceanStor Dorado 3000 V6 is an easy-to-use and cost-effective all-flash storage system, which is widely applied in small and medium-sized businesses (SMBs).
Presenting the featured Huawei-developed innovative hardware and FlashLink® intelligent algorithms, the system combines the intelligence and efficiency of the Smart series with the extremely high reliability of the Hyper series. In short, it helps build a solid foundation toward a modern, intelligent, and cloud-ready IT system infrastructure, and provides enterprises with unparalleled data services.
Specifications
| Hardware Specifications | OceanStor Dorado 3000 V6t | |
|---|---|---|
| Maximum Number of Controllers | 16* | |
| Maximum Cache (Dual Controllers, Expanding with the Number of Controllers) |
128–1024 GB | 192–1536 GB |
| Supported Interface Protocols | FC, iSCSI | FC，iSCSI，NFS，CIFS |
| Front-End Port Types | 8/16/32 Gbit/s FC/FC-NVMe* and 10/25/40/100 Gbit/s Ethernet, 25Gb NVMe over RoCE* |
|
| Back-End Port Types | 100G RDMA/SAS 3.0 | |
| Maximum Number of Hot-Swappable I/O Modules per Controller Enclosure | 6 | |
| Maximum Number of Front-End Ports per Controller Enclosure | 40 | |
| Maximum Number of SSDs | 1200 | |
| Supported SSDs | 1.92TB/3.84TB/7.68TB/15.36TB* palm-sized NVMe SSD 960GB/1.92TB/3.84TB/7.68TB/15.36TB SAS SSD | |
| Number of LUNs | 8192 | |
| Supported SCM | 800GB/1.6TB | |
| Software Specifications | |
|---|---|
| Supported RAID Levels | RAID 5, RAID 6, and RAID-TP (tolerates simultaneous failure of 3 SSDs) |
| Value-Added Features |
|
| Storage Management Software | DeviceManager, UltraPath, and eService |
Huawei All-Flash Storage Family

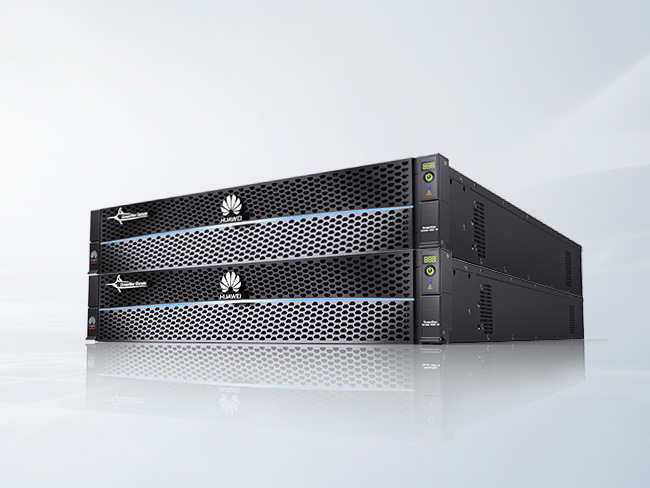

OceanStor Dorado 5000/6000 V6
Ensuring high availability, utilization, and usability with large-capacity storage, high-speed data access, and an eco-friendly design for medium and large enterprises.

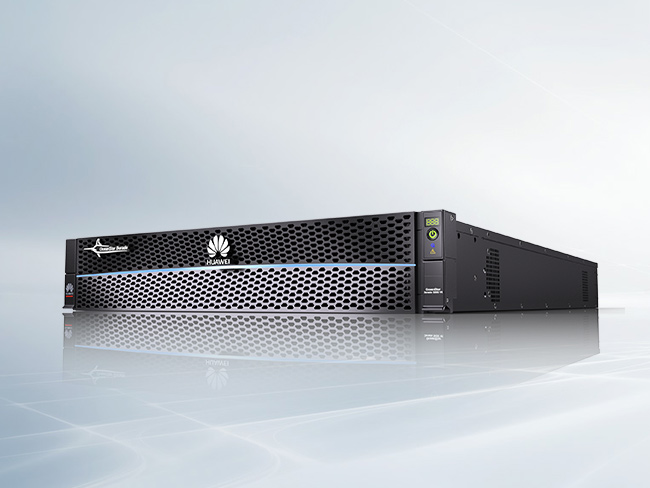

OceanStor Dorado 3000 V6
Offering simple, easy-to-use, and cost-effective features for SMB services.
